Product Description

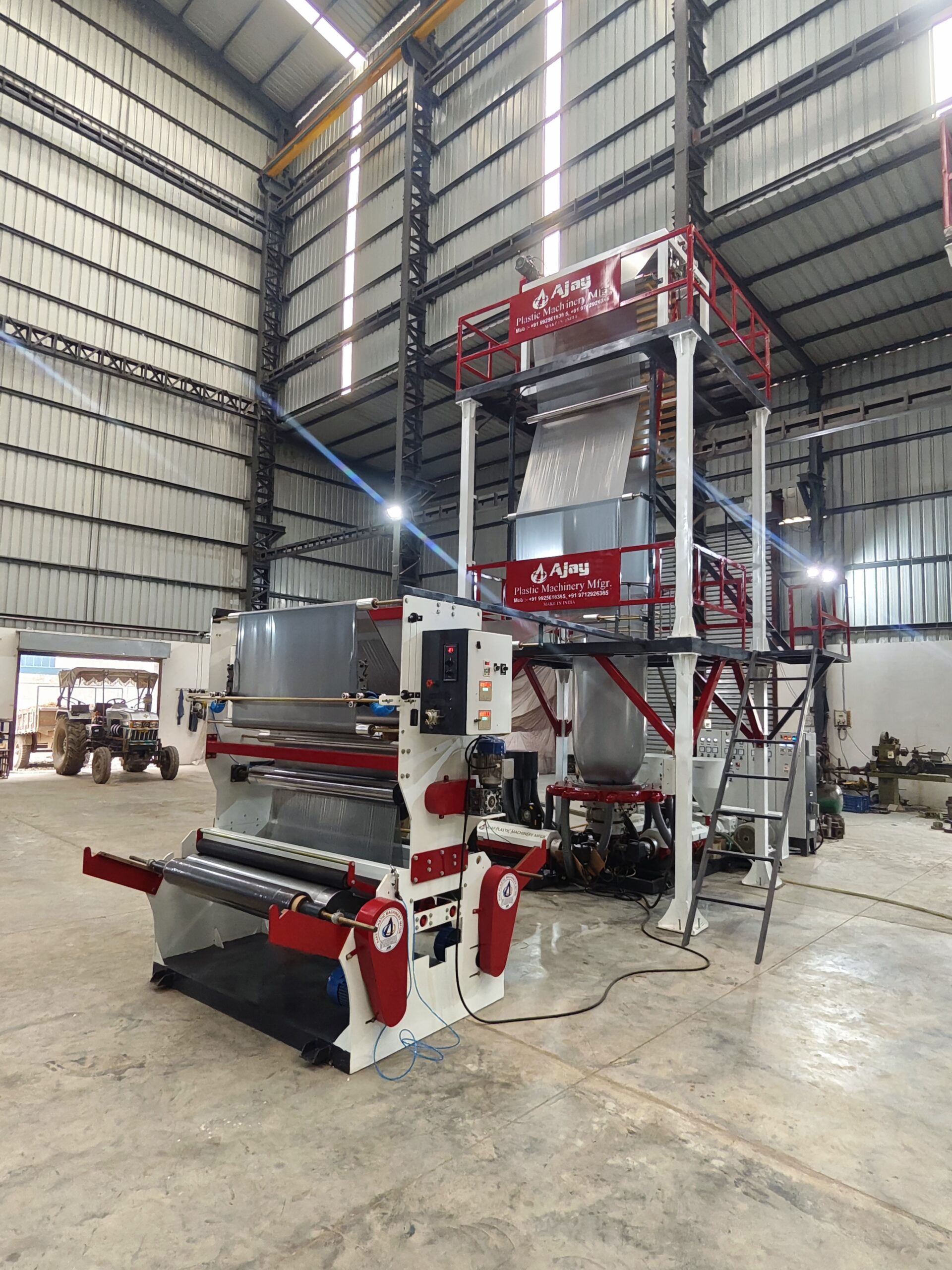

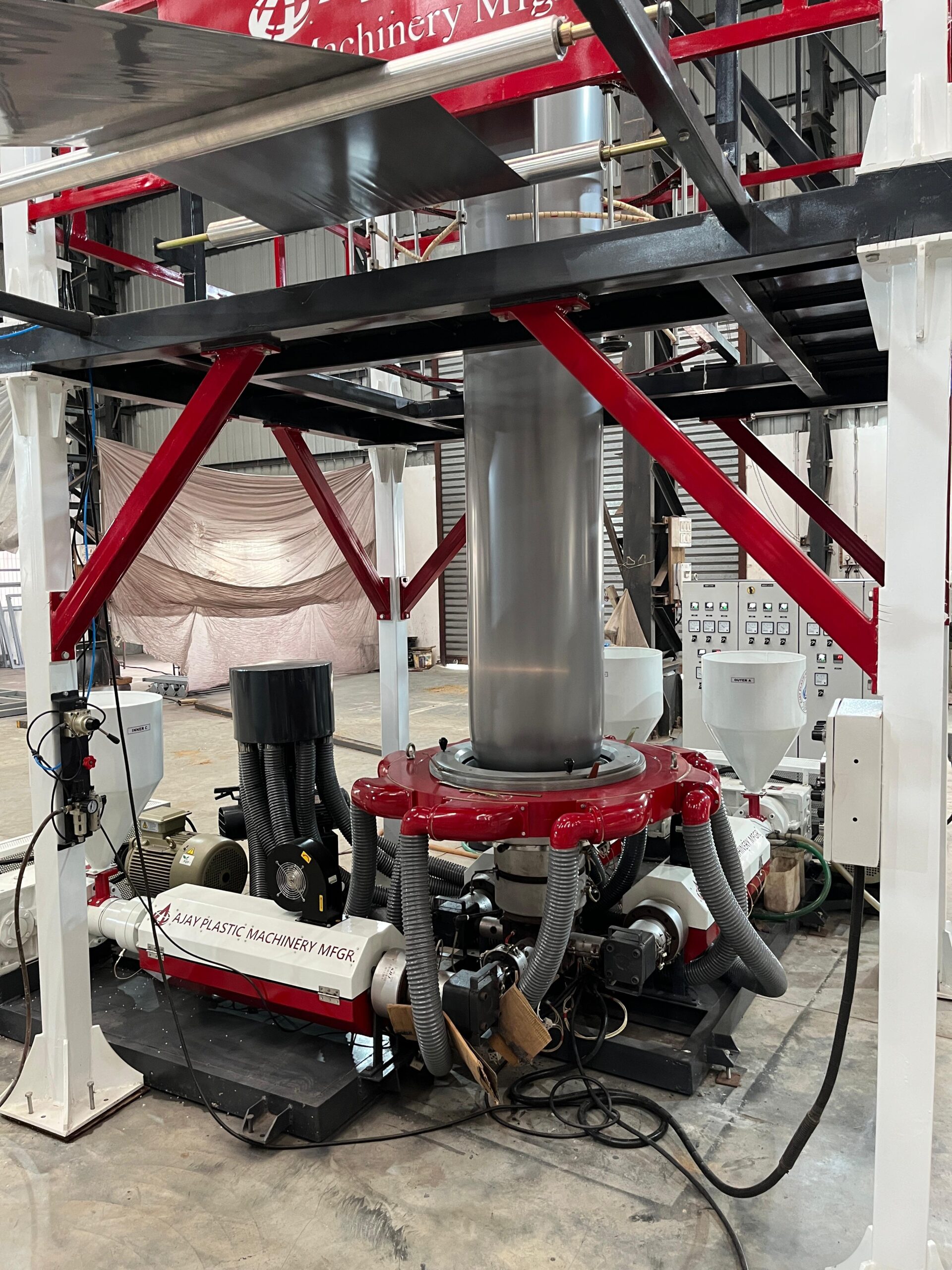

The ABA Three Layer Blown Film Plant is an advanced film extrusion system designed to produce high-strength, multi-layer plastic films with excellent durability, cost efficiency, and performance. The ABA structure allows manufacturers to use recycled or filler material in the middle layer while maintaining premium-quality outer layers, reducing raw material cost without compromising film strength.
This plant is ideal for modern packaging industries looking for improved film quality, enhanced mechanical properties, and economical production.
Key Features
✔ Three-layer (ABA) film structure
✔ Stronger film with better load capacity
✔ Cost-saving by using recycled material in core layer
✔ Excellent bubble stability
✔ Uniform thickness control
✔ High-output extrusion system
✔ Advanced air ring cooling
✔ Heavy-duty screw & barrel design
✔ Smooth and precise winding system
✔ Energy-efficient operation
Applications
• Carry bag film
• Garbage bag film
• Industrial packaging film
• Milk pouch film
• Courier bag film
• Agriculture film
• Liner bags
Technical Specifications
| Model | Screw Dia | Main Motor | Roll Size | Layflat Width | Max Output (Kg/Hrs) | Connecting Load |
| APM-35-45-35-TSW-36 | 35+45+35 | 10+15+10 | 36″ | 100-600 mm | 90-100 | 90 Kw |
| APM-45-45-45-TSW-36 | 45+45+45 | 15+15+15 | 36″ | 100-600 mm | 90-100 | 90Kw |
| APM-45-45-45-TSW-42 | 45+45+45 | 15+15+15 | 42″ | 200–1000 mm | 90-100 | 93 Kw |
| APM-45-45-45-TSW-52 | 45+45+45 | 15+15+15 | 52″ | 400–1200 mm | 90-100 | 93 Kw |
| APM-45-55-45-TSW-36 | 45+55+45 | 15+20+15 | 36″ | 100-600 mm | 120-130 | 94Kw |
| APM-45-55-45-TSW-42 | 45+55+45 | 15+20+15 | 42″ | 200–1000 mm | 120-130 | 94Kw |
| APM-45-55-45-TSW-52 | 45+55+45 | 15+20+15 | 52″ | 400–1200 mm | 120-140 | 94Kw |
| APM-45-55-45-TSW-62 | 45+55+45 | 15+20+15 | 62″ | 500-1500 mm | 120-140 | 96Kw |
